Glue spreader machine, plywood edge cutting saw machine are exported

We provide the complete set plywood machine. only you tell us your requirement, we can give you best solution plant.

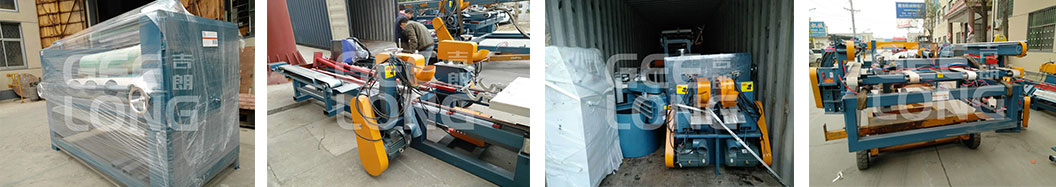

Today we delivery the glue spreader, glue mixer and plywood edge cutting saw machine to client.

4 ft glue spreader specifciation:

Roller quantity: 4pcs

Working speed: 24-90m/min

Diameter of glue coating roller: 246mm

Length of glue coating roller: 1400MM

rubber thickness: 13mm

Diameter of glue squeeze roller: 217mm

Length of glue squeeze roller: 1400mm

Reducer: 2 cycloidal pin

Power of motor: 3kw

Max. Veneer thickness: 20mm

Max. Veneer width: 1400mm

Overall size: 2200*1000*1400MM

Machine’s weight: 1000KGS

8ft glue spreader specification:

Working speed: 0-30m/min

Diameter of glue coating roller: 310mm

Length of glue coating roller: 2700mm

Diameter of glue squeeze roller: 217mm

Length of glue squeeze roller: 2700mm

Power of motor: 5.5kw

Max. Veneer thickness: 30mm

Max. Veneer width: 2700mm

Overall size: 3500x1250x1400mm

Machine’s weight: 3200KGS

plywood edge saw cutting machine specification:

Cutting length: 2440-2460mm

Cutting width: 1220-1240mm

Cutting thickness: 10-60mm

Saw blade size: Φ180mm & Φ305mm

Vertical sawing speed: 30m-60m/min

Horizontal sawing speed 30m-60m/min

Motor power: 37kw
